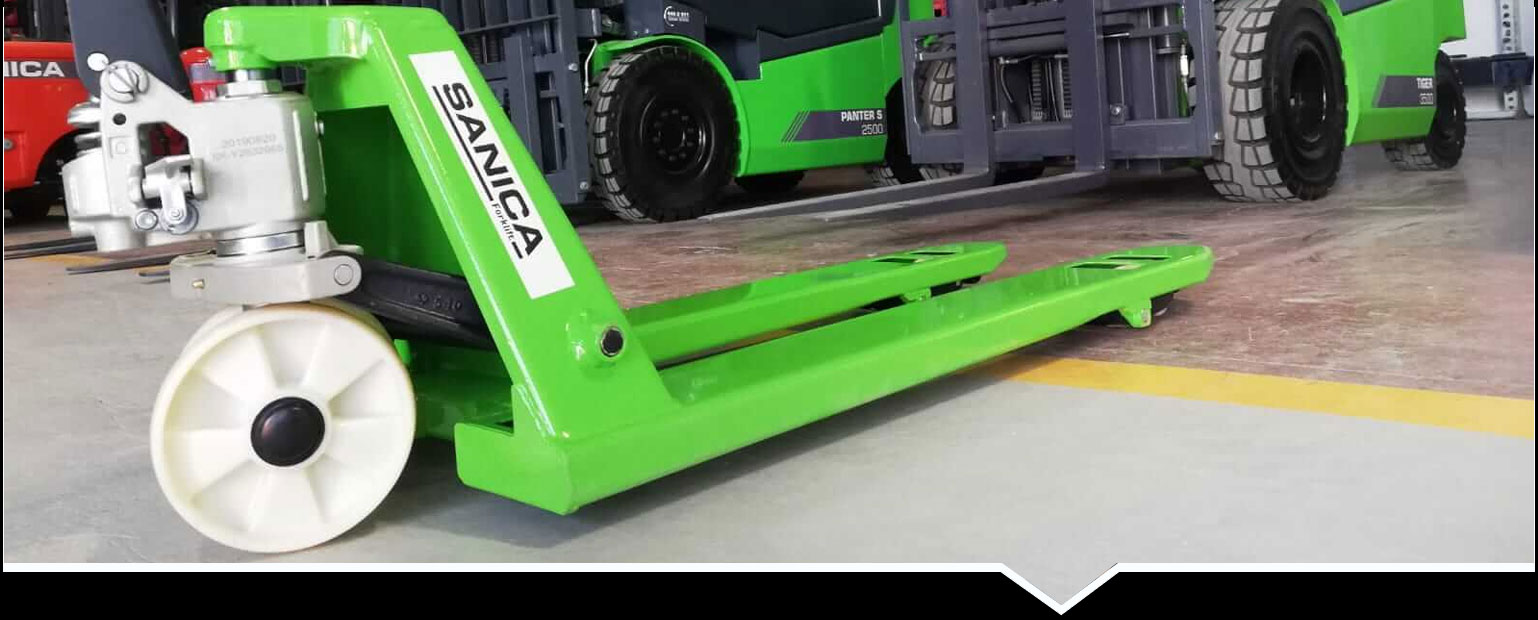

Sanica Manual Pallet Truck: Strong, durable and agile

In closed or open areas, our manual pallet trucks offer economical solutions for many transportation jobs in short distances.

Powerful and Agile

The lifting of the load is done by a manually operated hydraulic system. With this vehicle, you can easily carry loads up to 2000-2200-2500-3000-3500-5000 kg.

Your assistant in the warehouse

It is a loading-unloading vehicle used to lift packaged or palletized loads on a smooth ground, short distances from the ground and transport material. This manually operated vehicle is used by pushing or pulling.

Low Maintenance Cost

It can be used maintenance-free thanks to its permanently lubricated connections and maintenance-free pump hydraulics. Thanks to the quality material used, it provides maximum stability and longevity.

You can fill out the form below to get an offer.

Why Sanica manual pallet truck? Sanica is at your side with quality domestic products, reasonable prices.

Sanica Manuel Pallet Truck A control latch located on the upper side of the pushing/pulling lever is used at three positions when lifting and lowering the loads with a pallet truck.

A loading-unloading equipment that is used to lift packaged, protected or palletized loads from the ground and carry them within short distances. This equipment is manually used by means pulling or pushing. The load is lifted with the help of a manually operated hydraulic system. This equipment makes it possible to easily carry the loads of 2000-2200-2500-3000-3500-5000 kilograms.

Lifting Position
The piston activates when you lower the latch. The pallet truck lifts the loads when you raise or lower the pushing / pulling lever. When the pallet truck body reaches the maximum height (the highest position), the hydraulic system ceases to operate. So that the pallet truck lifts the loads.

Lowering Position
The latch is on the upper position. A ball valve activates when the latch is on the upper position to lower the loads and, the oil inside the tilt cylinder gets back to the tank with the help of a butterfly valve. So that the pallet truck lowers the loads. The control latch gets on the carrying position to lower the loads after the latch is taken to the lowering position.

Carrying

The latch is on the middle position. You can push or pull the pallet truck when the control latch is on the carrying position. This makes it easy to carry the loads and prevent the hydraulic system from being worn over time.

Technicial Specifications It is robust and long-lasting with its 4mm thick pallet truck chassis. Polyurethane Rubber Wheels: Provides working on hard, smooth floors. It does not collapse at full load.

Robust Fork System

The forks are supported by profiles. The reason is to eliminate the bending that may happen on the forks and, support the hydraulic system.

High Carrying Capacity

There is a strengthened hydraulic system intended to support the carrying capacity of the pallet ruck (2000-2200-25000 kgs).

Hydraulic system

There is a protective central valve mechanism that automatically turns off the system when the hydraulic system is overloaded.

Motor oil

The oil that is used in the hydraulic system is Shell Tellus 27 or Shell Tellus 37 motor oil. The oil capacity of the hydraulic system is 200-250 grs.

Polyurethane Rubber Wheels

Ball bearings inside the tires are of self-lubricating and covered. Not affected by corrosion (dust, rust, dirt etc.), not require lubricating. There are double ball bearings inside each of the tires.

Quality Piston

There is a grinded piston conforming to the European standards. This prevents the felts from being worn and, increases the useful life of the hydraulic system.

Polyamide Tires

Polyamide Tires (Black/White) Used to operate on hard and uneven floors. Recommended using in hygienic environments. Not affected by corrosion (dust, rust, dirt etc.), not require lubricating.

Pull / Push handle

The length of the pulling/pushing lever is at standards and, the controlling stick is positioned on the lever according to the occupational security.

The chassis

The pallet truck’s chassis is made of a metal sheet of 4 mm in thickness.
